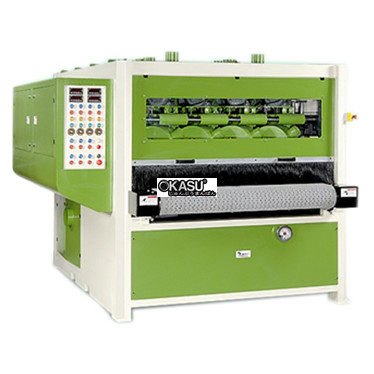

| Model/Item No : | SL-1350A2H2 (VACUUM) |
| Max. working width : | 53″ (1350mm) |
| Max. working height : | 5″ (127mm) |
| Min Work-pieces (For vacuum) : | 4″ (100mm) x 6.3″ (160mm) |
| Min. Work-pieces length (For hold down roller) : | 16″ (406mm) |
| Min. Work-pieces thickness : | 3/16″ (5mm) |
| Variable Feeding speed : | 50HZ (1.5~9.5 M/min) 60HZ (1.8~11M/min) |
| Speed of sanding wheel : | 200~1200 R.P.M |
| Horizontal sanding head motor : | 2 x 3 HP (1.12KW) |
| Horizontal / Oscillation : | 32mm / 28RPM |
| Angle / Oscillation : | 56mm / 28RPM |
| Conveyor motor (For vacuum) : | 3HP (2.2KW) |
| Moving brush head motor : | 1/4HP (0.18KW) |
| Brush Diameter : | 280mm (or) 320mm |
| Vacuum (optional) : | 2 x 15HP (11.5KW) |
| Machine Dimension ( D x W x H ) : | 284cm x 223cm x 200cm |
| Packing Dimension ( D x W x H ) : | 300cm x 230cm x 225cm |
| Net Weight (vacuum / hold down roller) : | 3125KGS / — |
| Gross Weight (vacuum / hold down roller) : | 3600KGS / — |
