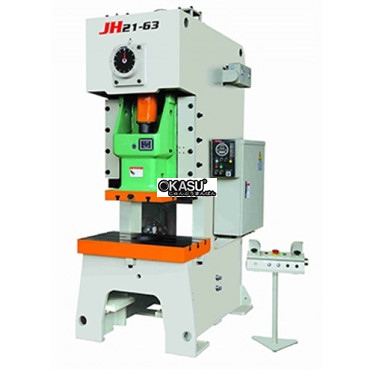

| JH21-63 | JH21-80 | |||
| Capacity | kN | 630 | 800 | |
| Nominal Stroke | mm | 4 | 5 | |
| Slide Stroke | mm | 120 | 140 | |
| SPM | Fixed | min -1 | 70 | 60 |
| Variable | 60-80 | 50-70 | ||
| Max. Die Height | mm | 300 | 320 | |
| Die Height Adjustment | mm | 80 | 80 | |
| Between Slide Center & Frame | mm | 300 | 300 | |
| Bolster (FB×LR) | mm | 580×900 | 580×1000 | |
| Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | φ200×40×φ180 | φ200×40×φ180 | |
| Bolster Thickness | mm | 110 | 120 | |
| Bolster Opening (Dia./FB×LR) | mm | 390×460 | 390×520 | |
| Slide Area (FB×LR) | mm | 400×480 | 420×560 | |
| Shank Hole (Dia.×Dpth) | mm | φ50×80 | φ50×80 | |
| Between Columns | mm | 560 | 640 | |
| Main Motor Power | kW | 5.5 | 7.5 | |
| Outline Size (FB×LR×H) | mm | 1580×1210×2520 | 1640×1280×2700 | |
| Net Weight | kg | 5400 | 7000 |
|
