Multitool XMTE10
······································
Our Multitool 4 has the same properties like a single
punch fully guided as a 90 Wilson series or Mate Ultra
series thanks to the following specifications:
• 8- tools up to 12,7 mm (A Type)
• 2- tools up to 24 mm (XMTE6 Type)
• Full guided punches
• Punches keyed for improved accuracy
• Unlimited Nibbling capacity
• Quick Tool Change
• 100 mm punch length / 7 mm grinding life
• Up to 22 tons – Maximum thickness up to 6,4 mm

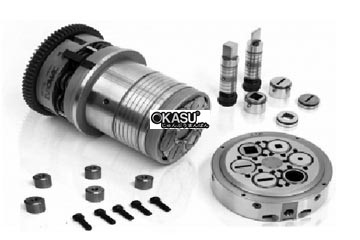

Multitool XMTE6
···········································································
Our Multitool 6 has the same properties like a single punch fully guided as a 90 Wilson series or Mate Ultra series thanks to the following specifications:
• 6- tools up to 24 mm (XMTE6 Type)
• 100 mm punch length / 7 mm grinding life
• Full guided punches
• Punches keyed for improved accuracy
• Unlimited Nibbling capacity
• Quick Tool Change
• Up to 22 tons – Maximum thickness up to 6 mm
• Adjustable striping spring force according to material and thickness

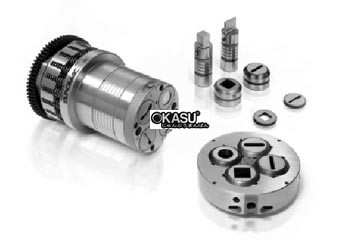

Multitool XMTE4
············································································
Our Multitool 4 has the same properties like a single punch fully guided as a 90 Wilson series or Mate Ultra series thanks to the following specifications:
• 4- tools up to 31,7 mm (B type)
• Full guided Punches
• Compatible with Single B stations MATE Ultra
• Punched keyed for improved accuracy
• Unlimited Nibbling capacity
• Quick tool change
• 100 mm punch length / 9 mm grinding life
• Up to 22 tons – Maximum thickness up to 10mm
• With special punch up to 12,7 mm thickness
• Adjustable striping spring force according to material and thickness

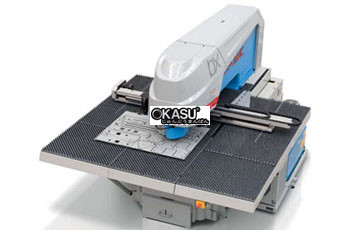

SPECIFICATION
|
Max punching force(KN) |
300 |
|
Y axis with Multitool /Monopunch (mm) |
|
|
Y = 1000 |
1050 / 1000 |
|
X axis (mm) |
1300/ 1250 |
|
Automatic repositioning in X (mm) |
up to 10000 |
|
Position accuracy (mm) |
+/- 0.05 |
|
Bidirectional Autoindex stations |
1 |
|
Opening of clamps (mm) |
7 |
|
Positioning clamps number |
2 |
|
Max. hit rate (1/min): Punching with 20 mm pitch |
250 |
|
Nibbling with 1 mm pitch |
600 |
|
Thickness range (mm) |
0.6-8 |
|
Max. weight at reduced axis speed (kg) |
150 |
|
USB port |
6 |
|
Installed power (kW) |
7.5 |
|
Average consumption (kW/h) |
4.5 |
|
Approx. weight (kg) X =1250 |
4000 |
|
Overall dimensions (mm) X =1250 |
2230 x 3140 |
| STANDARD ACCESSORIES | |
|
1 Indexed Station capable of rotating 360º with 0.01 in-crements capable to hold: - 1 Single station, A, B, C o D (not included) - 6 autoindex tools up to Ø 24 mm in XMTE6 (not included) - 4 autoindex tools up to Ø 31.7 inn XMTE4 (not included) - 10 autoindex tools 2 up to Ø 24 mm 8 up to Ø 12,7 mm in XMTE10 (not included) |
|
| 1 Fixed, no rotational stations capable to hold Multitools or single | |
| Rigid mono-block C-frame (no welding points) with 3 Open sides to help loading all type of sheet formats and allow sheet flip or rotations | |
| Programmable adjustment of stroke length. | |
| Nr.2 Hydraulic clamps (50 bar) | |
| Automatic lubrification system for top grilled single punches and Multitools | |
| Standalone machine control | |
| Standard machine software (Top punch ®) | |
| Tables with brushes | |
| Front overturning table extension L. 830 mm | |
| External cooling system. | |
| UPS system: protects the Console-PC from voltage drops and grants the power supply up to 30 minutes in case of electrical interruption | |
| Die Holders: 2 D Type, 1C Type, 2 B Type, 1 B/A Reduction | |
| Punch reductions: n 1D/C, n.2 D/B, n.1 B/A | |
| Set of keys (3-4-6-8 mm socket head screws, greaser) | |
| Pressure gauge | |
| USB Memory Stick | |
