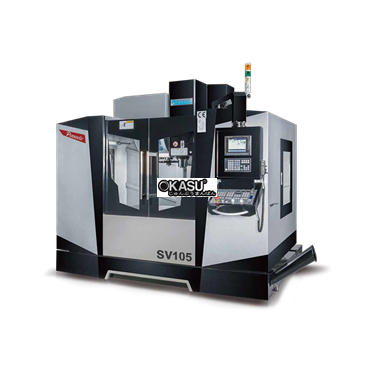

| TABLE |
|
|
| Table Size (mm) |
1000 x 510 |
1200 x 510 |
| Travel Ranges (X x Y x Z mm) |
850 x 560 x 560 |
1020 x 560 x 560 |
| Max. Table Load (kgs) |
600 |
600 |
| Spindle Nose to Table Surface (mm) |
100 ~ 660 |
100 ~ 660 |
| T-slot (Width x Distance x Number mm) |
18 x 100 x 5 |
18 x 100 x 5 |
| SPINDLE |
|
|
| Distance Between Column (mm) |
ISO40 |
ISO40 |
| Spindle Inner Diameter (mm) |
Ø60 |
Ø60 |
| Spindle Center to Column (mm) |
620 |
620 |
| Spindle Speed (rpm) Belt |
60 ~ 8000(10000/12000) |
60 ~ 8000(10000/12000) |
| Spindle Speed (rpm) Gear |
L40 ~ 2000, H2001 ~ 8000 |
L40 ~ 2000, H2001 ~ 8000 |
| Spindle Speed (rpm) Direct-Drive |
10000 / 12000 / 15000 |
10000 / 12000 / 15000 |
| Draw Bar Force (kgf) |
700 |
700 |
| Main Motor (con/30 min Kw) |
5.5 / 7.5 |
7.5 / 11 |
| FEED RATE |
|
|
| Rapid Feed Rate (X/Y/Z m/min) |
24 / 24 / 24 |
24 / 24 / 24 |
| Feed Rate (X/Y/Z/ mm/min) |
10000 |
10000 |
| AXIS SERVOMOTOR |
|
|
| Mitsubishi X/Y/Z (Kw) |
HF354 (3.5) |
HF354 (3.5) |
| Fanuc (Kw) |
β22/3000is 3.0 (α12i/3000i 3.0) |
| Siemens (Kw) |
1FK7063 (2.9) |
1FK7063 (2.9) |
| Fagor (Kw) |
FKM64.30A |
FKM64.30A |
| Heidenhain (Kw) |
QSY155B (2.47) |
QSY155B (2.47) |
| AUTO TOOL CHANGER |
|
|
| ATC Type |
DISK |
DISK |
| Cam Type |
DAUL ARM |
DAUL ARM |
| Tool Selection (Bi-direction) |
RANDOM |
RANDOM |
| Tool Storage Capacity (PCs) |
24 |
24 |
| Max. Tool Diameter (mm) |
Ø90 |
Ø90 |
| Max. Tool Length (mm), Weight (kgs) |
250, 8 |
250, 8 |
| MISCELLANEOUS |
|
|
| Air Requirement (Kg/cm²) |
6 |
6 |
| Voltage |
220 |
220 |
| Power Requirement (KVA) |
20 |
25 |
| Coolant Tank Capacity (L) |
200 |
200 |
| Machine Weight (Kgs) |
5600 |
5800 |
| Machine Height (mm) |
2750 |
2750 |
| Floor Space (L x W mm) |
2600 x 2230 |
2820 x 2230 |
| Packing Size (L x W x H mm) |
2900 x 2300 x 2450 |
2900 x 2230 x 2450 |
