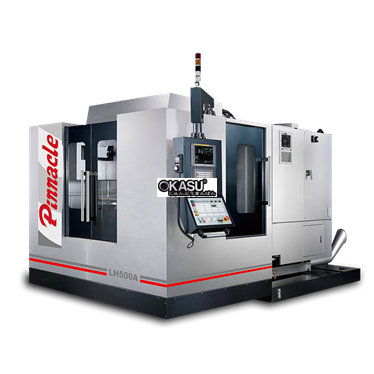

| TABLE |
|
| Table Size & Number (mm) |
500 x 500 |
| Travel Ranges (X x Y x Z mm) |
650 x 560 x 560 |
| Screw size (Size x Pitch mm) |
18 x 100 x 5 |
| Max. Table Load (kg) |
400 |
| Max. Workpiece Size (W x H mm) |
Ø630 x 610 |
| Spindle Center to Table surface (mm) |
50 |
| Spindle Nose to Table Center (mm) |
100 |
| Table Index (deg) |
1° (0.001°) |
| Method of Pallet Changer |
- |
| SPINDLE |
|
| Spindle Taper |
ISO40 |
| Spindle Inner Diameter (mm) |
Ø70 |
| Spindle Speed (rpm) Belt |
8000 |
| Spindle Speed (rpm) Gear |
8000 |
| Spindle Speed (rpm) Built-in |
15000 |
| Main Motor (con/30 min Kw) |
11/15 |
| AXIS SERVO MOTOR |
|
| Rapid Feed Rate (X/Y/Z m/min) |
30/24/30 |
| Feed Rate (X/Y/Z/ m/min) |
10 |
| X Axis Rated Torque (Nm) |
10 |
| Y Axis Rated Torque (Nm) |
10 |
| Z Axis Rated Torque (Nm) |
10 |
| B Axis Rated Torque (Nm) |
10 |
| B Axis Max. Rpm |
16.6 |
| AUTO TOOL CHANGER |
|
| ATC Type |
CHAIN |
| Cam Type |
ARM |
| Tool Selection (Bi-direction) |
RANDOM |
| Tool Storage Capacity (PCs) |
40 |
| Max. Tool Diameter (mm) |
Ø76 |
| Max. Tool Length |
300 |
| Max. Tool Weight |
8 |
| MISCELLANEOUS |
|
| Air Requirement (Kg/cm2) |
6 |
| Hydraulic Requirement (Kg/cm2, L) |
35, 60L |
| Voltage |
220 |
| Power Requirement (KVA) |
40 |
| Coolant Tank Capacity (L) |
300 |
| Machine Weight (KGs) |
6500 |
| Machine Height (mm) |
2425 |
| Floor Space (L x W mm) |
3055 x 4560 |
| Packing Size (L x W x H mm) |
2200 x 2900 x 2500 |
