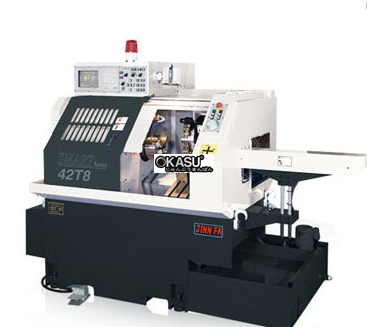

THÔNG SỐ KỸ THUẬT
ITEM |
UNIT |
SMART-42 |
SMART-42T8 |
| Max. swing over bed | mm | 320 | 320 |
| Max. turning diameter | mm | Ø200 | Ø200 |
| Max. turning length | mm | 117 | 140 |
| Max. bar capacity | mm | Ø 42 | Ø 42 |
| Bore of spindle | mm | Ø 44 | Ø 44 |
| Spindle bearing inside dia. | mm | Ø 80 | Ø 80 |
| Spindle nose | mm | A2-5 | A2-5 |
| Spindle speed range | rpm | 45 ~ 3500 | 45 ~ 3500 |
| Spindle motor | kw | 5.5 | 5.5 |
| Max. travel X1 / Z1 axis | mm | 215 / 127 | 215 / 150 |
| Rapid traverse X1 / Z1 axis | mm | 16 | 16 |
| Turret indexing time | sec | - | 0.3 |
| Machine slant degree | 20° | 20° | |
| Slide way type | Square guide way | Square guide way | |
| 3-jaw chuck size | 6” | 6” | |
| Collet type | mm | 173E | 173E |
| Turning tool size | mm | □20 | □20 |
| Boring tool diameter | mm | Ø 25 | Ø 25 |
| Cutting tool size | mm | □20 | □20 |
| X / Z axis ball screw dia. | mm | Ø 32 | Ø 32 |
| X / Z axis feeding motor | kw | 0.75 / 1.0 | 0.75 / 1.0 |
| Hydraulic motor | kw | 0.75 | 0.75 |
| Lubrication motor | w | 150 | 150 |
| Power requirement | kva | 10 | 10 |
| Coolant tank capacity | L | 80 | 80 |
| Machine dimensions (LxWxH) | mm | 2813x1350x1825 | 2813x1350x1825 |
| Weight | kg | 2200 | 2200 |
