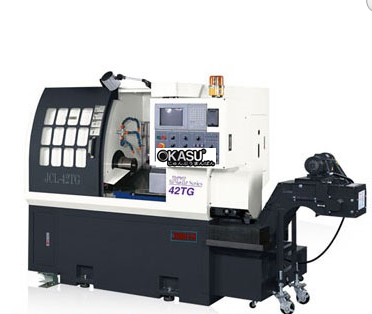

THÔNG SỐ KỸ THUẬT
ITEM |
UNIT |
JCL-42TG/52TG |
JCL-42TGM/52TGM |
| Max. swing over bed | mm | Ø440 | Ø440 |
| Max. turning diameter | mm | Ø200 | Ø140 |
| Max. turning length | mm | 195 / 180 | 155 / 140 |
| Max. part catch length | mm | 100 | 100 |
| Max. bar capacity | mm | Ø42 / Ø50 | Ø42 / Ø50 |
| Spindle bore diameter | mm | Ø55.5 / Ø70 | Ø55.5 / Ø70 |
| Spindle nose | A2-5 | A2-5 | |
| Spindle speed range | rpm | 45 ~ 4000 | 45 ~ 4000 |
| Spindle motor | kw | 7.5 | 7.5 |
| Number of tool stations $1 | 8 | 12 | |
| Number of tool stations $2 | 5 | 5 | |
| Max. stroke X1 | mm | 125 | 130 |
| Max. stroke Z1 | mm | 205 / 190 | 165 / 150 |
| Max. stroke X2 | mm | 240 | 240 |
| Max. stroke Z2 | mm | 290 | 290 |
| Rapid traverse X1 | m / min | 12 (16) | 12 (16) |
| Rapid traverse Z1 | m / min | 12 (16) | 12 (16) |
| Rapid traverse X2 | m / min | 12 (16) | 12 (16) |
| Rapid traverse Z2 | m / min | 12 (16) | 12 (16) |
| Turret indexing time | sec | 0.3 | 0.3 |
| Machine design | deg | 20° | 20° |
| Slide way type | Square guide way | Square guide way | |
| Main-spindle hydraulic chuck | inch | 6” | 6” |
| Turning tool diameter | mm | □20 | □16 |
| Boring tool diameter | mm | Ø25 | VDI 20 |
| Driven tool motor power / 30min | kw | - | 1.5 |
| Hydraulic motor | kw | 0.75 | 0.75 |
| Lubrication motor | w | 3.5 | 3.5 |
| Power requirement | kva | 15 | 21 |
| Coolant tank capacity | L | 100L (85%) | 100L (85%) |
| Machine dimensions (LxWxH) | mm | 2255x1800x1800 | 2255x1800x1800 |
