Specification |

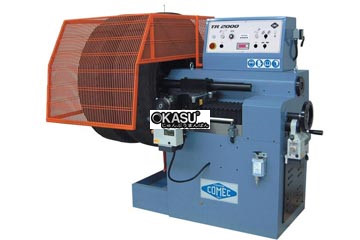

TR2000 |
|
Min-Max drum turning diameter |
240÷1000 mm |
|
Min-Max disc turning diameter |
0÷700 mm |
|
Longitudinal table travel |
300 mm |
|
Cross slide travel |
155 mm |
|
Spindle rotation speed |
10÷120 rpm |
|
Longitudinal table feed |
0÷180 mm/min |
|
Cross slide feed |
0÷180 mm/min |
|
Spindle motor power |
1.85 kW |
|
Table motor power |
2x60 W |
|
Dimensions (LxWxH) |
1870x1430x1470 mm |
|
Weight |
770 kg |
