THÔNG SỐ KỸ THUẬT
ITEM |
UNIT |
JSL-32RB |
JSL-32RBY |
JSL-42RB |

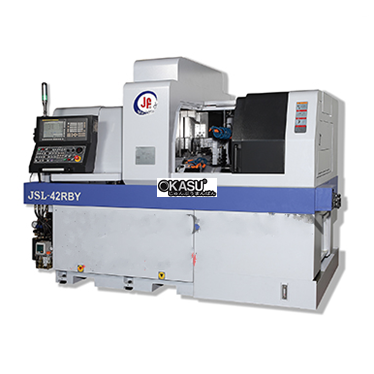

JSL-42RBY |
JSL-51RB |
JSL-51RBY |
| Max. turning diameter of main spindle | mm | 32 | 42 | 51 | |||
| Max. turning diameter of sub-spindle | mm | 32 | 42 | 51 | |||
| Max. turning length(rotating guide bushing) | mm | 300 | |||||
| Max. turning length(non-guide bushing) | mm | 130 | |||||
| Max. drilling/tapping capacity of sub spindle | mm | Ø13 / M10 | Ø16 / M12 | ||||
| Max. drilling/tapping capacity of main spindle | mm | Ø10 / M8 | Ø26 / M16 | ||||
| Max. cross drilling/tapping capacity | mm | Ø10 / M6 | Ø12 / M10 | ||||
| O.D. tool holder | pcs | 6 (口16mm) / 5 (口20mm) | |||||
| I.D. tool holder | pcs | 5 / Ø25mm | |||||
| S1 cross live tool holder | pcs | 6 (ER-20) | |||||
| Face drills of sub-spindle | pcs | 4 | 8 | 4 | 8 | 4 | 8 |
| Controlled axes (Incl. C-axis) | pcs | 7 | 8 | 7 | 8 | 7 | 8 |
| Main/sub-spindle bore | mm | Ø34 | Ø44 | Ø52 | |||
| Max. speed of main/sub-spindle | rpm | 7000 | 6000 | 4500 | |||
| X1/Z1/Y1/X2/Z2/Y2 axis rapid traverse | m/min | 24 | |||||
| Max. speed of S1 cross drilling | rpm | 4000 | |||||
| S1cross tooling drive motor | KW | 1.6 | 2.5 | ||||
| S2 face tooling drive motor | KW | 0.75 | 2.5 | ||||
| Max. speed of S2 drill | rpm | 4000 | |||||
| Main spindle motor | KW | 5.5 / 7.5 | 11 | 15 | |||
| Sub spindle motor | KW | 5.5 / 7.5 | 7.5 | 11 | |||
| X1/Z1 axis motor | KW | 1.4 | 2.5 | ||||
| Y1/X2/Z2 axis motor | KW | 0.75 | 2.5 | ||||
| Y2 axis motor | KW | non | 0.75 | non | 0.75 | non | 2.5 |
| Coolant pump motor | KW | 1.29 | 0.54 | ||||
| Power required | KVA | 30 | |||||
| Lubrication oil capacity | L | 2 | |||||
| Coolant tank capacity | L | 250(100%) | |||||
| Machine dimensions(L x W x H) | mm | 3173x1695x2146 | |||||
| Weight | KG | 4900 | 4920 | 4900 | 4920 | 5450 | |
