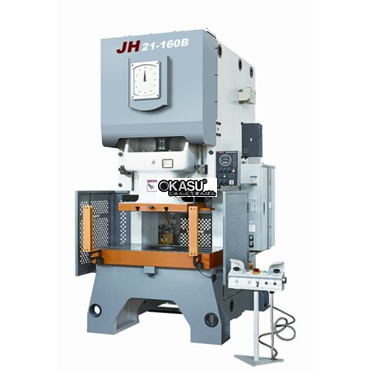

• may dap khung c mot truc khuyu yang li jh21-160b hinh 1

Máy dập khung C một trục khuỷu YANG LI JH21-160B

0
Mã sản phẩm: JH21-160B

  • Hà Nội - 0906 066 638

    0906 066 6380906 066 638Khôi Nguyên

    0902 226 3580902 226 358Thùy Chi

  • TP.HCM - 0967 458 568

    09022263590902226359Nguyên Khôi

    09674585680967458568Quang Được

JH21-160B JH21-200B JH21-250B JH21-315B
Capacity kN 1600 2000 2500 3150
Nominal Stroke mm 6 6 8 8
Slide Stroke mm 160 200 250 250
SPM Fixed min -1 40 35 30 30
Variable 35-50 30-40 25-35 25-35
Max. Die Height mm 350 450 500 550
Die Height Adjustment mm 110 110 120 120
Between Slide Center & Frame mm 380 390 420 460
Bolster (FB×LR) mm 740×1300 760×1400 800×1400 880×1600
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) mm φ300×50×φ260 φ300×50×φ260 φ320×50×φ280 φ320×50×φ280
Bolster Thickness mm 150 160 170 200
Bolster Opening (Dia./FB×LR) mm φ470 φ470 370×570 440×580
Slide Area (FB×LR) mm 580×770 600×800 650×850 700×950
Shank Hole (Dia.×Dpth) mm φ65×85 φ65×90 φ70×90 φ70×90
Between Columns mm 850 870 960 920
Main Motor Power kW 15 18.5 22 30
Outline Size (FB×LR×H) mm 2280×1550×3240 2500×1580×3420 2770×1700×4060 2850×1700×4450
Net Weight kg 14500 17350 24500 28000

JH21-160B JH21-200B JH21-250B JH21-315B
Capacity kN 1600 2000 2500 3150
Nominal Stroke mm 6 6 8 8
Slide Stroke mm 160 200 250 250
SPM Fixed min -1 40 35 30 30
Variable 35-50 30-40 25-35 25-35
Max. Die Height mm 350 450 500 550
Die Height Adjustment mm 110 110 120 120
Between Slide Center & Frame mm 380 390 420 460
Bolster (FB×LR) mm 740×1300 760×1400 800×1400 880×1600
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) mm φ300×50×φ260 φ300×50×φ260 φ320×50×φ280 φ320×50×φ280
Bolster Thickness mm 150 160 170 200
Bolster Opening (Dia./FB×LR) mm φ470 φ470 370×570 440×580
Slide Area (FB×LR) mm 580×770 600×800 650×850 700×950
Shank Hole (Dia.×Dpth) mm φ65×85 φ65×90 φ70×90 φ70×90
Between Columns mm 850 870 960 920
Main Motor Power kW 15 18.5 22 30
Outline Size (FB×LR×H) mm 2280×1550×3240 2500×1580×3420 2770×1700×4060 2850×1700×4450
Net Weight kg 14500 17350 24500 28000
